Options for Indirect Rotary Dryers

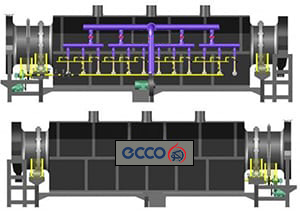

ECCO® Indirect Rotary Dryers rely on the heat transferred through the drum’s shell to dry the material via conduction and radiation to reduce the material’s moisture content. Indirect drying allows you to tightly control the processing environment, an ideal characteristic when working with materials that can be combustible or where higher temperatures are required to remove bound water. Our indirect dryer units can have tumbling flights (optional) and an air stream heat exchanger (optional) mounted in the combustion chamber stacks to utilize waste heat to heat sweep air and increase drying efficiency.
ECCO®Drying Systems IDR3615(4)
Diameter |
36" |
Length |
15' |
Drive System |
5 HP drive with 25:1 gearbox,saddle drive chain and sprocket |
Maximum firing Capacity |
25 MMBtu\hr |
Available Construction Materials |
1/4" 304 SS, 3/8" SS,3/8 Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDR3622 (Long) (4)
Diameter |
36" |
Length |
22' 6" |
Drive System |
10 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
4 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" 304 SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDR4820 (4)
Diameter |
48" |
Length |
20' |
Drive System |
10 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
5 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDR483o (Long)
Diameter |
48" |
Length |
30' |
Drive System |
15 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
7.5 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" 304 SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDR6025 (4)
Diameter |
60" |
Length |
25' |
Drive System |
20 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
12 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDR6037 (Long) (4)
Diameter |
60" |
Length |
37' 6" |
Drive System |
25 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
18 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" 304 SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDR7230 (4)
Diameter |
72" |
Length |
30' |
Drive System |
40 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
18 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDR7245 (Long) (4)
Diameter |
72" |
Length |
45' |
Drive System |
25 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
18 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" 304 SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDR8435 (4)
Diameter |
84" |
Length |
35' |
Drive System |
60 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
24 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDR8452 (Long) (4)
Diameter |
84" |
Length |
52' |
Drive System |
100 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
36 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" 304 SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDRg640 (4)
Diameter |
96" |
Length |
40' |
Drive System |
100 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
30 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
ECCO® Drying Systems IDRg66o (Long) (4)
Diameter |
96" |
Length |
60' |
Drive System |
150 HP drive with 25:1 gearbox, saddle drive chain and sprocket |
Maximum firing Capacity |
45 MMBtu/hr |
Available Construction Materials |
1/4" 304 SS, 3/8" 304 SS, 3/8" Inconel and 1/4" 316 SS |
Includes:
refractory lined combustion chamber burner assemblies feed and discharge bridging drive motor feed auger
